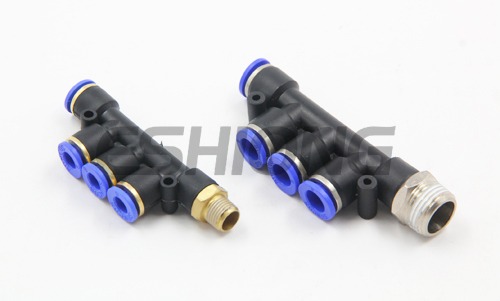

Branch Triple
Description
Type | Model | Type | Model | Type | Model | Type | Model | ||||
Tube(mm) | Thread(R) | Tube(mm) | Thread(NPT) | Tube(Inch) | Thread(R) | Tube(Inch) | Thread(NPT) | ||||
PKB04-M5 | 04 | M5 | |||||||||
PKB04-M6 | 04 | M6 | |||||||||
PKB04-01 | 04 | 1/8 | PKB04-N01 | 04 | NPT1/8 | PKB5/32-01 | 5/32 | 1/8 | PKB5/32-N01 | 5/32 | NPT1/8 |
PKB04-02 | 04 | 1/4 | PKB04-N02 | 04 | NPT1/4 | PKB5/32-02 | 5/32 | 1/4 | PKB5/32-N02 | 5/32 | NPT1/4 |
PKB06-M5 | 06 | M5 | PKB3/16-01 | 3/16 | 1/8 | PKB3/16-N01 | 3/16 | NPT1/8 | |||
PKB06-M6 | 06 | M6 | PKB3/16-02 | 3/16 | 1/4 | PKB3/16-N02 | 3/16 | NPT1/4 | |||
PKB06-01 | 06 | 1/8 | PKB06-N01 | 06 | NPT1/8 | PKB1/4-01 | 1/4 | 1/8 | PKB1/4-N01 | 1/4 | NPT1/8 |
PKB06-02 | 06 | 1/4 | PKB06-N02 | 06 | NPT1/4 | PKB1/4-02 | 1/4 | 1/4 | PKB1/4-N02 | 1/4 | NPT1/4 |
PKB06-03 | 06 | 3/8 | PKB06-N03 | 06 | NPT3/8 | PKB1/4-03 | 1/4 | 3/8 | PKB1/4-N03 | 1/4 | NPT3/8 |
PKB06-04 | 06 | 1/2 | PKB06-N04 | 06 | NPT1/2 | PKB1/4-04 | 1/4 | 1/2 | PKB1/4-N04 | 1/4 | NPT1/2 |
PKB08-01 | 08 | 1/8 | PKB08-N01 | 08 | NPT1/8 | PKB5/16-01 | 5/16 | 1/8 | PKB5/16-N01 | 5/16 | NPT1/8 |
PKB08-02 | 08 | 1/4 | PKB08-N02 | 08 | NPT1/4 | PKB5/16-02 | 5/16 | 1/4 | PKB5/16-N02 | 5/16 | NPT1/4 |
PKB08-03 | 08 | 3/8 | PKB08-N03 | 08 | NPT3/8 | PKB5/16-03 | 5/16 | 3/8 | PKB5/16-N03 | 5/16 | NPT3/8 |
PKB08-04 | 08 | 1/2 | PKB08-N04 | 08 | NPT1/2 | PKB5/16-04 | 5/16 | 1/2 | PKB5/16-N04 | 5/16 | NPT1/2 |
PKB10-01 | 10 | 1/8 | PKB10-N01 | 10 | NPT1/8 | PKB3/8-01 | 3/8 | 1/8 | PKB3/8-N01 | 3/8 | NPT1/8 |
PKB10-02 | 10 | 1/4 | PKB10-N02 | 10 | NPT1/4 | PKB3/8-02 | 3/8 | 1/4 | PKB3/8-N02 | 3/8 | NPT1/4 |
PKB10-03 | 10 | 3/8 | PKB10-N03 | 10 | NPT3/8 | PKB3/8-03 | 3/8 | 3/8 | PKB3/8-N03 | 3/8 | NPT3/8 |
PKB10-04 | 10 | 1/2 | PKB10-N04 | 10 | NPT1/2 | PKB3/8-04 | 3/8 | 1/2 | PKB3/8-N04 | 3/8 | NPT1/2 |
PKB12-01 | 12 | 1/8 | PKB12-N01 | 12 | NPT1/8 | PKB1/2-01 | 1/2 | 1/8 | PKB1/2-N01 | 1/2 | NPT1/8 |
PKB12-02 | 12 | 1/4 | PKB12-N02 | 12 | NPT1/4 | PKB1/2-02 | 1/2 | 1/4 | PKB1/2-N02 | 1/2 | NPT1/4 |
PKB12-03 | 12 | 3/8 | PKB12-N03 | 12 | NPT3/8 | PKB1/2-03 | 1/2 | 3/8 | PKB1/2-N03 | 1/2 | NPT3/8 |
PKB12-04 | 12 | 1/2 | PKB12-N04 | 12 | NPT1/2 | PKB1/2-04 | 1/2 | 1/2 | PKB1/2-N04 | 1/2 | NPT1/2 |
