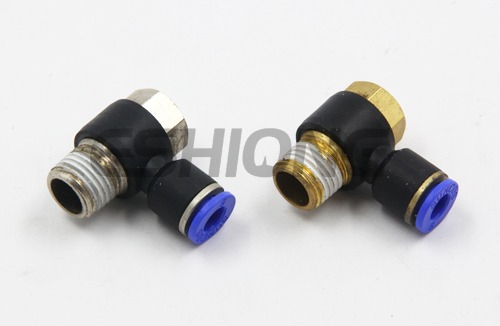

Universal Elbow
Description
| Type | Model | Type | Model | Type | Model | Type | Model | ||||
| Tube(mm) | Thread (R) | Tube(mm) | Thread(NPT) | Tube(Inch) | Thread(R) | Tube(Inch) | Thread(NPT) | ||||
| PH04-M5 | 04 | M5 | |||||||||
| PH04-M6 | 04 | M6 | |||||||||
| PH04-01 | 04 | 1/8 | PH04-N01 | 04 | NPT1/8 | PH5/32-01 | 5/32 | 1/8 | PH5/32-N01 | 5/32 | NPT1/8 |
| PH04-02 | 04 | 1/4 | PH04-N02 | 04 | NPT1/4 | PH5/32-02 | 5/32 | 1/4 | PH5/32-N02 | 5/32 | NPT1/4 |
| PH06-M5 | 06 | M5 | PH3/16-01 | 3/16 | 1/8 | PH3/16-N01 | 3/16 | NPT1/8 | |||
| PH06-M6 | 06 | M6 | PH3/16-02 | 3/16 | 1/4 | PH3/16-N02 | 3/16 | NPT1/4 | |||
| PH06-01 | 06 | 1/8 | PH06-N01 | 06 | NPT1/8 | PH1/4-01 | 1/4 | 1/8 | PH1/4-N01 | 1/4 | NPT1/8 |
| PH06-02 | 06 | 1/4 | PH06-N02 | 06 | NPT1/4 | PH1/4-02 | 1/4 | 1/4 | PH1/4-N02 | 1/4 | NPT1/4 |
| PH06-03 | 06 | 3/8 | PH06-N03 | 06 | NPT3/8 | PH1/4-03 | 1/4 | 3/8 | PH1/4-N03 | 1/4 | NPT1/4 |
| PH08-01 | 08 | 1/8 | PH08-N01 | 08 | NPT1/8 | PH5/16-01 | 5/16 | 1/8 | PH5/16-N01 | 5/16 | NPT1/8 |
| PH08-02 | 08 | 1/4 | PH08-N02 | 08 | NPT1/4 | PH5/16-02 | 5/16 | 1/4 | PH5/16-N02 | 5/16 | NPT1/4 |
| PH08-03 | 08 | 3/8 | PH08-N03 | 08 | NPT3/8 | PH5/16-03 | 5/16 | 3/8 | PH5/16-N03 | 5/16 | NPT3/8 |
| PH08-04 | 08 | 1/2 | PH08-N04 | 08 | NPT1/2 | PH5/16-04 | 5/16 | 1/2 | PH5/16-N04 | 5/16 | NPT1/2 |
| PH10-02 | 10 | 1/4 | PH10-N02 | 10 | NPT1/4 | PH3/8-02 | 3/8 | 1/4 | PH3/8-N02 | 3/8 | NPT1/4 |
| PH10-03 | 10 | 3/8 | PH10-N03 | 10 | NPT3/8 | PH3/8-03 | 3/8 | 3/8 | PH3/8-N03 | 3/8 | NPT3/8 |
| PH10-04 | 10 | 1/2 | PH10-N04 | 10 | NPT1/2 | PH3/8-04 | 3/8 | 1/2 | PH3/8-N04 | 3/8 | NPT1/2 |
| PH12-02 | 12 | 1/4 | PH12-N02 | 12 | NPT1/4 | PH1/2-02 | 1/2 | 1/4 | PH1/2-N02 | 1/2 | NPT1/4 |
| PH12-03 | 12 | 3/8 | PH12-N03 | 12 | NPT3/8 | PH1/2-03 | 1/2 | 3/8 | PH1/2-N03 | 1/2 | NPT3/8 |
| PH12-04 | 12 | 1/2 | PH12-N04 | 12 | NPT1/2 | PH1/2-04 | 1/2 | 1/2 | PH1/2-N04 | 1/2 | NPT1/2 |
