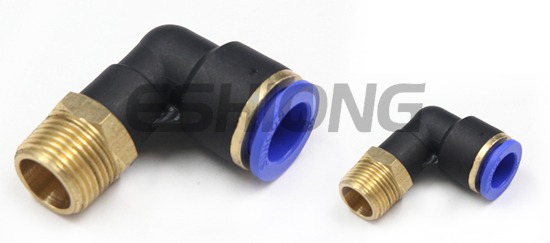

Male Elbow
Description
| Model | SIZE | Model | SIZE | Model | SIZE | Model | SIZE | ||||
| Tube(mm) | Thread (R) | Tube(mm) | Thread(NPT) | Tube(Inch) | Thread (R) | Tube(Inch) | Thread(NPT) | ||||
| PL04-M5 | 04 | M5 | |||||||||
| PL04-M6 | 04 | M6 | |||||||||
| PL04-01 | 04 | 1/8 | PL04-N01 | 04 | NPT1/8 | PL5/32-01 | 5/32 | 1/8 | PL5/32-N01 | 5/32 | NPT1/8 |
| PL04-02 | 04 | 1/4 | PL04-N02 | 04 | NPT1/4 | PL5/32-02 | 5/32 | 1/4 | PL5/32-N02 | 5/32 | NPT1/4 |
| PL06-M5 | 06 | M5 | PL3/16-01 | 3/16 | 1/8 | PL3/16-N01 | 3/16 | NPT1/8 | |||
| PL06-M6 | 06 | M6 | PL3/16-02 | 3/16 | 1/4 | PL3/16-N02 | 3/16 | NPT1/4 | |||
| PL06-01 | 06 | 1/8 | PL06-N01 | 06 | NPT1/8 | PL1/4-01 | 1/4 | 1/8 | PL1/4-N01 | 1/4 | NPT1/8 |
| PL06-02 | 06 | 1/4 | PL06-N02 | 06 | NPT1/4 | PL1/4-02 | 1/4 | 1/4 | PL1/4-N02 | 1/4 | NPT1/4 |
| PL06-03 | 06 | 3/8 | PL06-N03 | 06 | NPT3/8 | PL1/4-03 | 1/4 | 3/8 | PL1/4-N03 | 1/4 | NPT3/8 |
| PL06-04 | 06 | 1/2 | PL06-N04 | 06 | NPT1/2 | PL1/4-04 | 1/4 | 1/2 | PL1/4-N04 | 1/4 | NPT1/2 |
| PL08-01 | 08 | 1/8 | PL08-N01 | 08 | NPT1/8 | PL5/16-01 | 5/16 | 1/8 | PL5/16-N01 | 5/16 | NPT1/8 |
| PL08-02 | 08 | 1/4 | PL08-N02 | 08 | NPT1/4 | PL5/16-02 | 5/16 | 1/4 | PL5/16-N02 | 5/16 | NPT1/4 |
| PL08-03 | 08 | 3/8 | PL08-N03 | 08 | NPT3/8 | PL5/16-03 | 5/16 | 3/8 | PL5/16-N03 | 5/16 | NPT3/8 |
| PL08-04 | 08 | 1/2 | PL08-N04 | 08 | NPT1/2 | PL5/16-04 | 5/16 | 1/2 | PL5/16-N04 | 5/16 | NPT1/2 |
| PL10-01 | 10 | 1/8 | PL10-N01 | 10 | NPT1/8 | PL3/8-01 | 3/8 | 1/8 | PL3/8-N01 | 3/8 | NPT1/8 |
| PL10-02 | 10 | 1/4 | PL10-N02 | 10 | NPT1/4 | PL3/8-02 | 3/8 | 1/4 | PL3/8-N02 | 3/8 | NPT1/4 |
| PL10-03 | 10 | 3/8 | PL10-N03 | 10 | NPT3/8 | PL3/8-03 | 3/8 | 3/8 | PL3/8-N03 | 3/8 | NPT3/8 |
| PL10-04 | 10 | 1/2 | PL10-N04 | 10 | NPT1/2 | PL3/8-04 | 3/8 | 1/2 | PL3/8-N04 | 3/8 | NPT1/2 |
| PL12-01 | 12 | 1/8 | PL12-N01 | 12 | NPT1/8 | PL1/2-01 | 1/2 | 1/8 | PL1/2-N01 | 1/2 | NPT1/8 |
| PL12-02 | 12 | 1/4 | PL12-N02 | 12 | NPT1/4 | PL1/2-02 | 1/2 | 1/4 | PL1/2-N02 | 1/2 | NPT1/4 |
| PL12-03 | 12 | 3/8 | PL12-N03 | 12 | NPT3/8 | PL1/2-03 | 1/2 | 3/8 | PL1/2-N03 | 1/2 | NPT3/8 |
| PL12-04 | 12 | 1/2 | PL12-N04 | 12 | NPT1/2 | PL1/2-04 | 1/2 | 1/2 | PL1/2-N04 | 1/2 | NPT1/2 |
| PL14-01 | 14 | 1/8 | PL14-N01 | 14 | NPT1/8 | ||||||
| PL14-02 | 14 | 1/4 | PL14-N02 | 14 | NPT1/4 | ||||||
| PL14-03 | 14 | 3/8 | PL14-N03 | 14 | NPT3/8 | ||||||
| PL14-04 | 14 | 1/2 | PL14-N04 | 14 | NPT1/2 | ||||||
| PL16-01 | 16 | 1/8 | PL16-N01 | 16 | NPT1/8 | ||||||
| PL16-02 | 16 | 1/4 | PL16-N02 | 16 | NPT1/4 | ||||||
| PL16-03 | 16 | 3/8 | PL16-N03 | 16 | NPT3/8 | ||||||
| PL16-04 | 16 | 1/2 | PL16-N04 | 16 | NPT1/2 | ||||||
