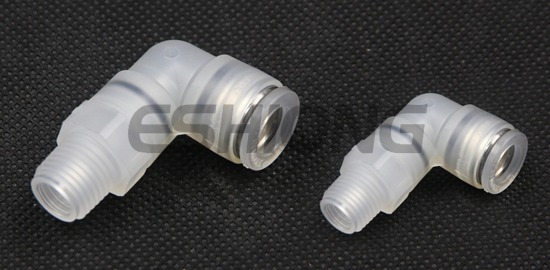

Male Elbow
Description
| Type | Model | Type | Model | Type | Model | Type | Model | ||||
| Tube(mm) | Thread (R) | Tube(mm) | Thread(NPT) | Tube(Inch) | Thread (R) | Tube(Inch) | Thread(NPT) | ||||
| TPL04-M5 | 04 | M5 | |||||||||
| TPL04-M6 | 04 | M6 | |||||||||
| TPL04-01 | 04 | 1/8 | TPL04-N01 | 04 | NPT1/8 | TPL5/32-01 | 5/32 | 1/8 | TPL5/32-N01 | 5/32 | NPT1/8 |
| TPL04-02 | 04 | 1/4 | TPL04-N02 | 04 | NPT1/4 | TPL5/32-02 | 5/32 | 1/4 | TPL5/32-N02 | 5/32 | NPT1/4 |
| TPL06-M5 | 06 | M5 | TPL3/16-01 | 3/16 | 1/8 | TPL3/16-N01 | 3/16 | NPT1/8 | |||
| TPL06-M6 | 06 | M6 | TPL3/16-02 | 3/16 | 1/4 | TPL3/16-N02 | 3/16 | NPT1/4 | |||
| TPL06-01 | 06 | 1/8 | TPL06-N01 | 06 | NPT1/8 | TPL1/4-01 | 1/4 | 1/8 | TPL1/4-N01 | 1/4 | NPT1/8 |
| TPL06-02 | 06 | 1/4 | TPL06-N02 | 06 | NPT1/4 | TPL1/4-02 | 1/4 | 1/4 | TPL1/4-N02 | 1/4 | NPT1/4 |
| TPL06-03 | 06 | 3/8 | TPL06-N03 | 06 | NPT3/8 | TPL1/4-03 | 1/4 | 3/8 | TPL1/4-N03 | 1/4 | NPT3/8 |
| TPL06-04 | 06 | 1/2 | TPL06-N04 | 06 | NPT1/2 | TPL1/4-04 | 1/4 | 1/2 | TPL1/4-N04 | 1/4 | NPT1/2 |
| TPL08-01 | 08 | 1/8 | TPL08-N01 | 08 | NPT1/8 | TPL5/16-01 | 5/16 | 1/8 | TPL5/16-N01 | 5/16 | NPT1/8 |
| TPL08-02 | 08 | 1/4 | TPL08-N02 | 08 | NPT1/4 | TPL5/16-02 | 5/16 | 1/4 | TPL5/16-N02 | 5/16 | NPT1/4 |
| TPL08-03 | 08 | 3/8 | TPL08-N03 | 08 | NPT3/8 | TPL5/16-03 | 5/16 | 3/8 | TPL5/16-N03 | 5/16 | NPT3/8 |
| TPL08-04 | 08 | 1/2 | TPL08-N04 | 08 | NPT1/2 | TPL5/16-04 | 5/16 | 1/2 | TPL5/16-N04 | 5/16 | NPT1/2 |
| TPL10-01 | 10 | 1/8 | TPL10-N01 | 10 | NPT1/8 | TPL3/8-01 | 3/8 | 1/8 | TPL3/8-N01 | 3/8 | NPT1/8 |
| TPL10-02 | 10 | 1/4 | TPL10-N02 | 10 | NPT1/4 | TPL3/8-02 | 3/8 | 1/4 | TPL3/8-N02 | 3/8 | NPT1/4 |
| TPL10-03 | 10 | 3/8 | TPL10-N03 | 10 | NPT3/8 | TPL3/8-03 | 3/8 | 3/8 | TPL3/8-N03 | 3/8 | NPT3/8 |
| TPL10-04 | 10 | 1/2 | TPL10-N04 | 10 | NPT1/2 | TPL3/8-04 | 3/8 | 1/2 | TPL3/8-N04 | 3/8 | NPT1/2 |
| TPL12-01 | 12 | 1/8 | TPL12-N01 | 12 | NPT1/8 | TPL1/2-01 | 1/2 | 1/8 | TPL1/2-N01 | 1/2 | NPT1/8 |
| TPL12-02 | 12 | 1/4 | TPL12-N02 | 12 | NPT1/4 | TPL1/2-02 | 1/2 | 1/4 | TPL1/2-N02 | 1/2 | NPT1/4 |
| TPL12-03 | 12 | 3/8 | TPL12-N03 | 12 | NPT3/8 | TPL1/2-03 | 1/2 | 3/8 | TPL1/2-N03 | 1/2 | NPT3/8 |
| TPL12-04 | 12 | 1/2 | TPL12-N04 | 12 | NPT1/2 | TPL1/2-04 | 1/2 | 1/2 | TPL1/2-N04 | 1/2 | NPT1/2 |
| TPL14-01 | 14 | 1/8 | TPL14-N01 | 14 | NPT1/8 | ||||||
| TPL14-02 | 14 | 1/4 | TPL14-N02 | 14 | NPT1/4 | ||||||
| TPL14-03 | 14 | 3/8 | TPL14-N03 | 14 | NPT3/8 | ||||||
| TPL14-04 | 14 | 1/2 | TPL14-N04 | 14 | NPT1/2 | ||||||
| TPL16-01 | 16 | 1/8 | TPL16-N01 | 16 | NPT1/8 | ||||||
| TPL16-02 | 16 | 1/4 | TPL16-N02 | 16 | NPT1/4 | ||||||
| TPL16-03 | 16 | 3/8 | TPL16-N03 | 16 | NPT3/8 | ||||||
| TPL16-04 | 16 | 1/2 | TPL16-N04 | 16 | NPT1/2 | ||||||
